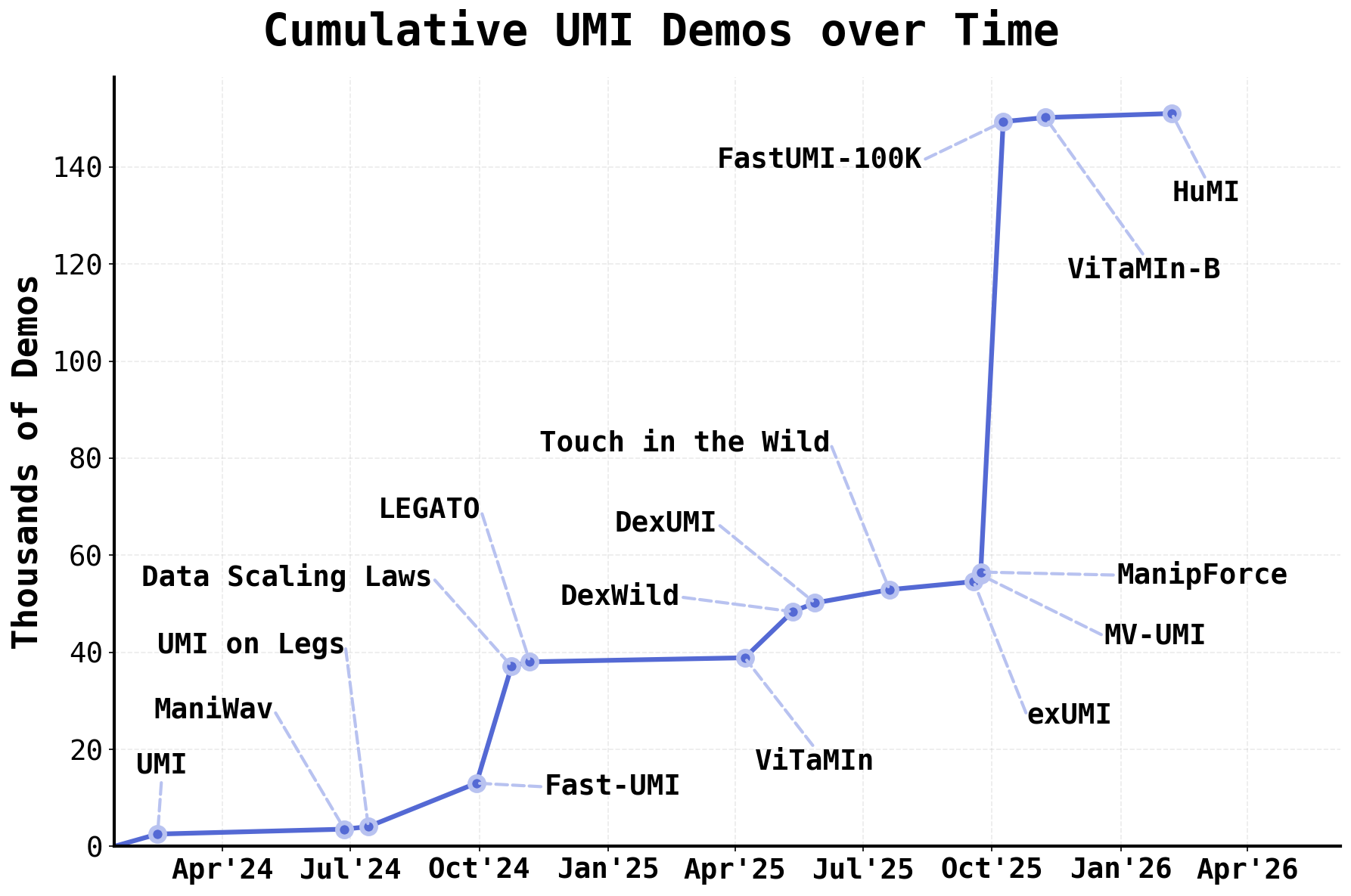

UMI has multiple tiers of data storage formats:
- GoPro: Just a folder of GoPro MP4s :)
- SLAM Output of ORB_SLAM3 pipeline (volatile)
- Zarr A single zip file optimized for fast random reading for training.
Following Diffusion Policy, UMI uses Zarr as the container for training datasets. Zarr is similar to HDF5 but offers better
flexibility for storage backends, chunking, compressors, and parallel access.
Conceptually, Zarr can be understood as a nested dict
of "numpy arrays". For
example, here is the structure of the example_demo_session
dataset.
import Zarr
from diffusion_policy.codecs.imagecodecs_numcodecs import register_codecs, JpegXl
register_codecs()
root = zarr.open('example_demo_session/dataset.zarr.zip')
print(root.tree())
>>>
/
├── data
│ ├── camera0_rgb (2315, 224, 224, 3) uint8
│ ├── robot0_demo_end_pose (2315, 6) float64
│ ├── robot0_demo_start_pose (2315, 6) float64
│ ├── robot0_eef_pos (2315, 3) float32
│ ├── robot0_eef_rot_axis_angle (2315, 3) float32
│ └── robot0_gripper_width (2315, 1) float32
└── meta
└── episode_ends (5,) int64
ReplayBuffer
We implemented the ReplayBuffer
class to access Zarr data conveniently.
from diffusion_policy.common.replay_buffer import ReplayBuffer
replay_buffer = ReplayBuffer.create_from_group(root)
replay_buffer.n_episodes
>>> 5
# reading an episode
ep = replay_buffer.get_episode(0)
ep.keys()
>>> dict_keys(['camera0_rgb', 'robot0_demo_end_pose', 'robot0_demo_start_pose', 'robot0_eef_pos', 'robot0_eef_rot_axis_angle', 'robot0_gripper_width'])
ep['robot0_gripper_width']
>>>
array([[0.07733118],
[0.07733118],
[0.07734068],
...
[0.08239228],
[0.08236252],
[0.0823558 ]], dtype=float32)
Data Group
In root['data']
"dict," we have a group of arrays containing demonstration
episodes concatenated along the first dimension (time/step). In this dataset, we have 2315 steps across
five episodes. In UMI, data has a frame rate of 60Hz (59.94Hz), matching the recording frame rate of
GoPros. All arrays in root['data']
must have the same size in their first (time)
dimension.
root['data']['robot0_eef_pos']
>>> <zarr.core.Array '/data/robot0_eef_pos' (2315, 3) float32>
root['data']['robot0_eef_pos'][0]
>>> array([ 0.1872826 , -0.35130176, 0.1859438 ], dtype=float32)
root['data']['robot0_eef_pos'][:]
>>>
array([[ 0.1872826 , -0.35130176, 0.1859438 ],
[ 0.18733297, -0.3509169 , 0.18603411],
[ 0.18735182, -0.3503186 , 0.18618457],
...,
[ 0.12694108, -0.3326249 , 0.13230264],
[ 0.12649481, -0.3347473 , 0.1347403 ],
[ 0.12601827, -0.33651358, 0.13699797]], dtype=float32)
How do we know the start and end of each episode? We store an integer array
root['meta']['episode_ends']
that contains each episode's
end
index into data
arrays.
For example, the first episode can be accessed with
root['data']['robot0_eef_pos'][0:468]
and the second episode can be
accessed with root['data']['robot0_eef_pos'][468:932]
.
root['meta']['episode_ends'][:]
>>> array([ 468, 932, 1302, 1710, 2315])
Data Array Chunking and Compression
Note that all arrays in the dataset are of type zarr.core.Array
instead of
numpy.ndarray
. While offering similar API to numpy arrays, Zarr arrays are optimized for
fast on-disk storage with chunked compression. For example, camera images
root['data']['camera0_rgb']
is stored with chunk size
(1, 224, 224, 3)
and JpegXl
compression. When reading from a Zarr array, a
chunk of data is loaded from disk storage and decompressed to a numpy array.
💡 For optimal performance, the chunk size has to be chosen carefully. A
chunk size too big means that the
data loader will decompress the data more than necessary (e.g., chunks=(100, 224, 244, 3) will
decompress and discard 99 images when accessing [0]). In contrast, having the chunk size too small
will
incur additional overhead and reduce compression rate (e.g., chunks=(1,14,14,3) means each image is
split into 256 chunks).
root['data']['camera0_rgb']
>>> <zarr.core.Array '/data/camera0_rgb' (2315, 224, 224, 3) uint8>
root['data']['camera0_rgb'].chunks # chunk size
>>> (1, 224, 224, 3)
root['data']['camera0_rgb'].nchunks # number of chunks
>>> 2315
root['data']['camera0_rgb'].compressor
>>> JpegXl(decodingspeed=None, distance=None, effort=None, index=None, keeporientation=None, level=99, lossless=False, numthreads=1, photometric=None, planar=None, usecontainer=None)
root['data']['camera0_rgb'][0]
>>>
array([[[ 7, 6, 15],
[ 7, 6, 15],
[ 4, 4, 13],
...,
[ 6, 7, 15],
[ 4, 7, 14],
[ 3, 6, 13]],
...,
[[ 0, 0, 0],
[ 0, 0, 0],
[ 0, 0, 0],
...,
[ 0, 0, 0],
[ 0, 0, 0],
[ 0, 0, 0]]], dtype=uint8)
We use a relatively large chunk size for low-dimensional data. Since these data are cached into a numpy
array inside UmiDataset,
no read IOPS overhead is introduced.
root['data']['robot0_eef_pos'].chunks
>>> (468, 3)
root['data']['robot0_eef_pos'].compressor # uncompressed chunks
>>> None
In-memory Compression
During training, streaming datasets from a network drive is often bottlenecked by IOPS, especially when multiple GPUs/nodes are reading
from the same network drive. While loading the entire dataset to memory works around the IOPS
bottleneck, an uncompressed UMI dataset often does not fit in RAM.
We found streaming compressed datasets from RAM a good tradeoff between memory footprint and
read performance.
root.store
>>> <zarr.storage.ZipStore at 0x76b73017d400>
ram_store = zarr.MemoryStore()
# load stored chunks in bytes directly to memory, without decompression
zarr.convenience.copy_store(root.store, ram_store)
ram_root = zarr.group(ram_store)
print(ram_root.tree())
>>>
/
├── data
│ ├── camera0_rgb (2315, 224, 224, 3) uint8
│ ├── robot0_demo_end_pose (2315, 6) float64
│ ├── robot0_demo_start_pose (2315, 6) float64
│ ├── robot0_eef_pos (2315, 3) float32
│ ├── robot0_eef_rot_axis_angle (2315, 3) float32
│ └── robot0_gripper_width (2315, 1) float32
└── meta
└── episode_ends (5,) int64
# loading compressed data to RAM with ReplayBuffer
ram_replay_buffer = ReplayBuffer.copy_from_store(
root.store,
zarr.MemoryStore()
)
ep = ram_replay_buffer.get_episode(0)
